Product Name：RS232/485/422 Serial Fiber modem
Model：MF280
Reference Price：
RS231/485/422 Serial Fiber modem
Overview
FM280 is a RS-232/RS-485/RS-422 serial fiber modem, designed for industrial standard。The hanging designs supporting DIN-rail installation. Now, many user choose RS-232/RS-485/RS/422 serial fiber modem to solve electromagnetic interfere and extend RS-232/RS-485/RS-422 serial transmission distance to several kilometer even several ten kilometers. FM280 can providers-232/RS485/RS-422 serial port to port transparent transmission. Due to adopt fiber transmission, it transmit the fiber signal in the fiber. There is no electric conduct. So it have good ability conflicting interfere, high voltage and thunder.
Features
1.Zero delay auto transmit
2.Support RS232/485/422 connector
3.Auto monitoring rate, distinguish and control the date transmit direction.
4.Operation wavelength: 850nm (multi mode), 1310nm ( single mode)
5.Max. transmit rate: 500Kbps
6.Fiber connector: ST/SC/FC
7.Transmit distance: 2Km (multi mode), 20K ( single mode)
8.Power supply: 5～40V DC OR 85～ 265V AC wide voltage input.
9.Providing 1500W surge protection and 15KV static protect.
10.Power: outside power or inside power

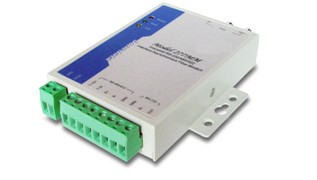

Product picture
Standard			EIA RS-232, RS-485
RS-232 signal			IN,OUT,GND
RS-485 signal			D+,D-,GND
RS-422 signal			R+,R-,T+,T-,GND
Fiber signal			IN,OUT
Working mode			Asynchronous operation,point to point.
baud rate			0-500Kbps, auto monitoring signal rate
wavelenght			Multi-mode：850nm，single mode：1310nm
Electrical port transmit distance			RS-232：15m，RS-485/422：1200m
Fiber port transmit distance			Multi-mode：２km，, single mode：40km
Load ability			RS-485/422 support 32 node s(128node for subscriber )
Fiber connector			Multi-mode：ＳＣ，Single：FC。
Operation temperature			-25℃～70℃
Storage temperature			-40℃～85℃
Humidity			5%～95%
Input power			5～40V, wide voltage input
Power consumption			2W
Dimension			100mm×69mm×22mm( Length ×width ×height)
Figure			Ferric figure
Color			computer white
weight			230g
