Features

△：8-bit digitally encoded and non-compression video transmission
△：Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232,
RS-422, and RS-485 data protocols
△：Support any high-resolution video signal
△：Automatic compatible PAL, NTSC and SECAM video system
△：Power supply and other parameter state indication, which can monitor the operation condition of system
△：Support no-damage regenerative trunk of video
△：Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .
△：Special ASIC design .
△：Industry-grade of operating temperature from -10℃to 75℃, which is applied to the different working   environment
△：Hot-swap function
△：Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis.

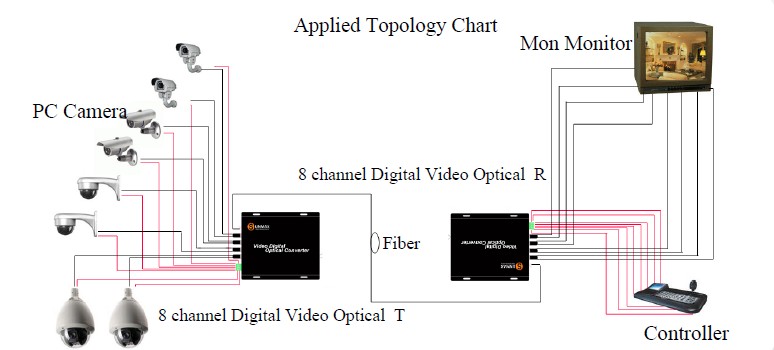

Application connection diagram:
